型號 Model |
排出口徑 Drain-out aperture mm |
流量 Flow m³/h |
揚(yáng)程 Head m |
轉(zhuǎn)速 Speed r/min |
功率 Power kW |
效率 Efficiency % |
重量 Weight Kg |
|
700WQ9000-6-250 |
ф700 |
9000 |
6 |
740 |
250 |
82 |
2800 |
|
700WQ10000-6-280 |
ф700 |
10000 |
6 |
740 |
280 |
83 |
2800 |

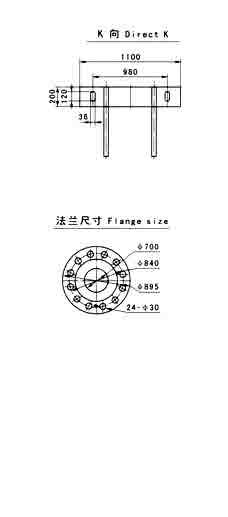

說明：JYWQ型自動攪勻潛水排污泵性能參數(shù)等同WQ型潛水式排污泵(見上表)。外形尺寸見下頁。
Note:
the parameters of model JYWQ aut-ostirring submersible sewage pump are identical to those of model WQ submersible sewage
pump (see the table above), see the next page for the out-form dimensions.
|

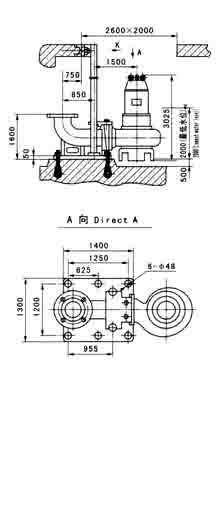

自動耦合式安裝
Auto-coupling
installation
|
軟管移動式安裝
Hose
movable installation
|
